90 Cherokee XJ rebuilding

[sms1878]

assembled inner clutch packs and put the new springs from transgo kit.

should open the valve body to drill and replace remaining springs.

[poksutin]

engine porn

[sms1878]

finally had sometime to put things back together. not all though.

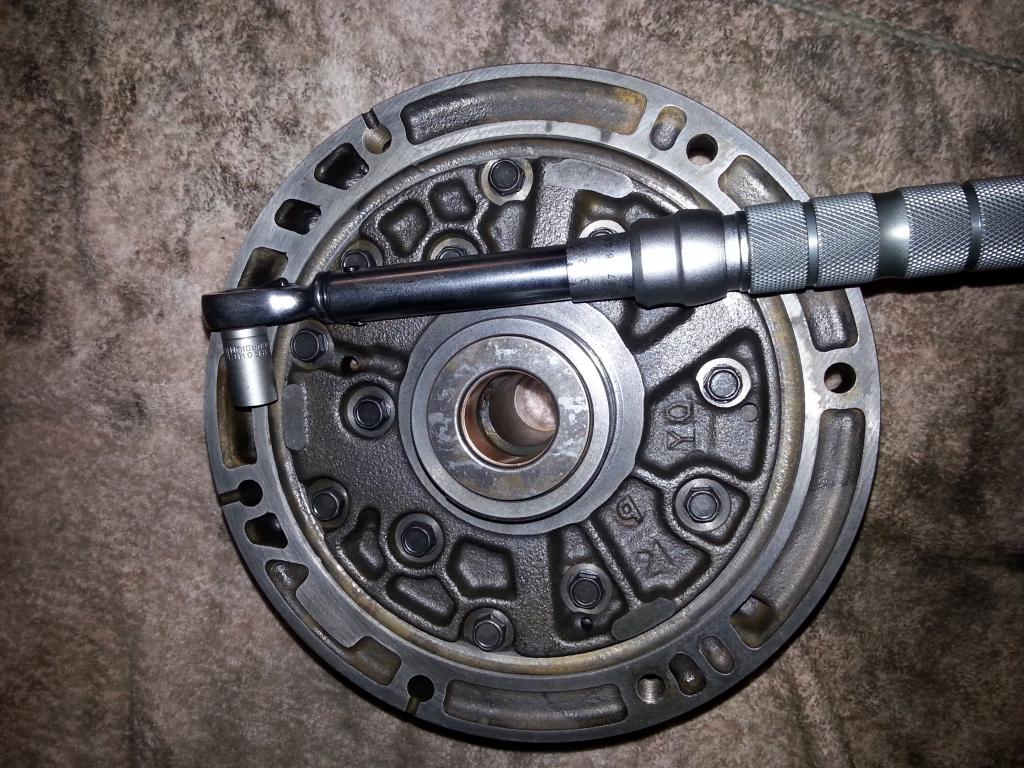

cleaned up that stator and removed oil seal to replace. closed the body after 3 months

and now time for valve-body. hopefully won't screw things up in here.

except that last pin. cs.

[sms1878]

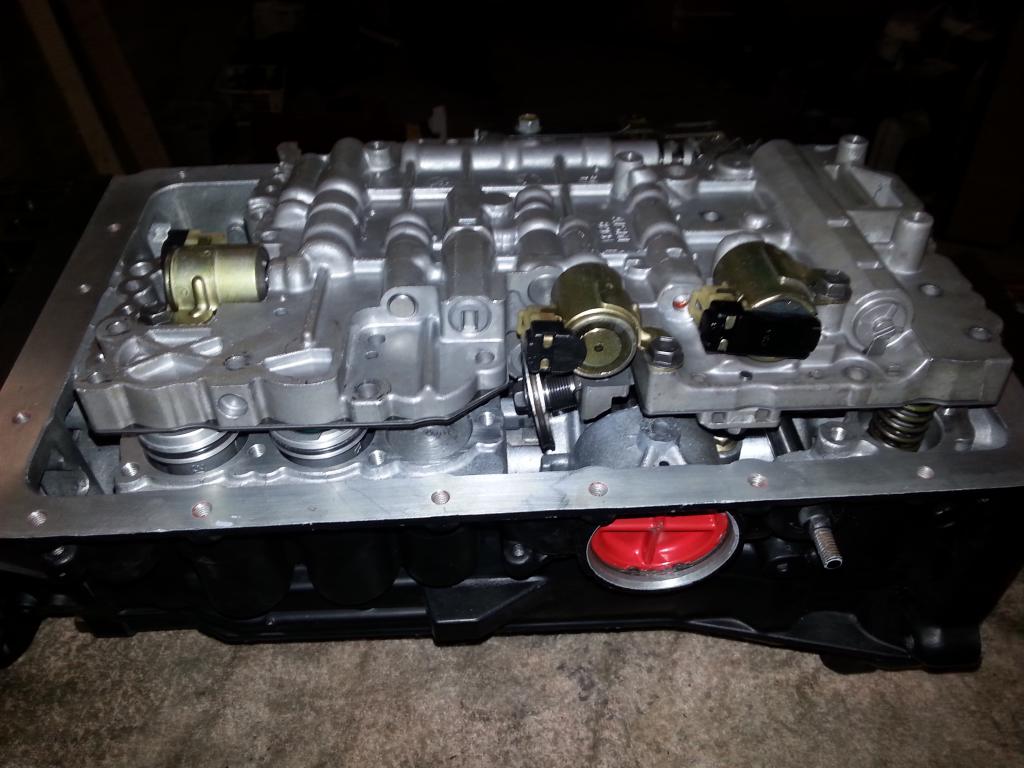

valve bodies are ready. replaced the springs with transgo kits and cleaned up valve guides.

gonna drill the middle plate and close it up till the cracking.

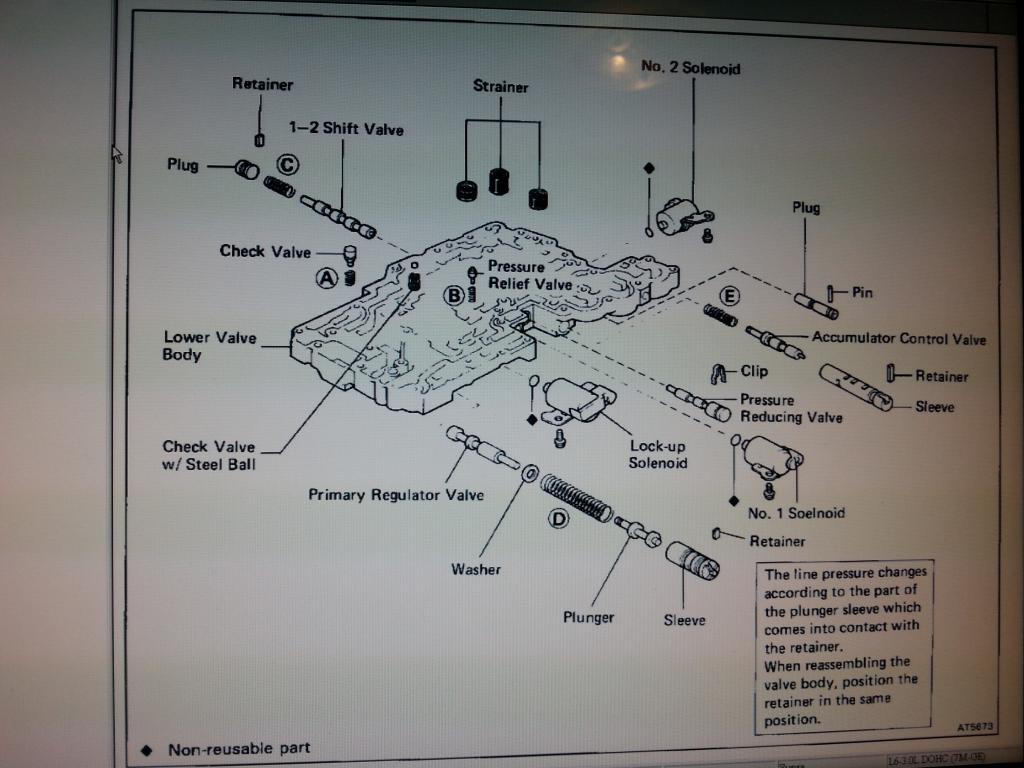

i used toyota supra 7m-ge service specs as reference. jeep aw4 diagrams/specs didn't match on the valve body i have.

[sms1878]

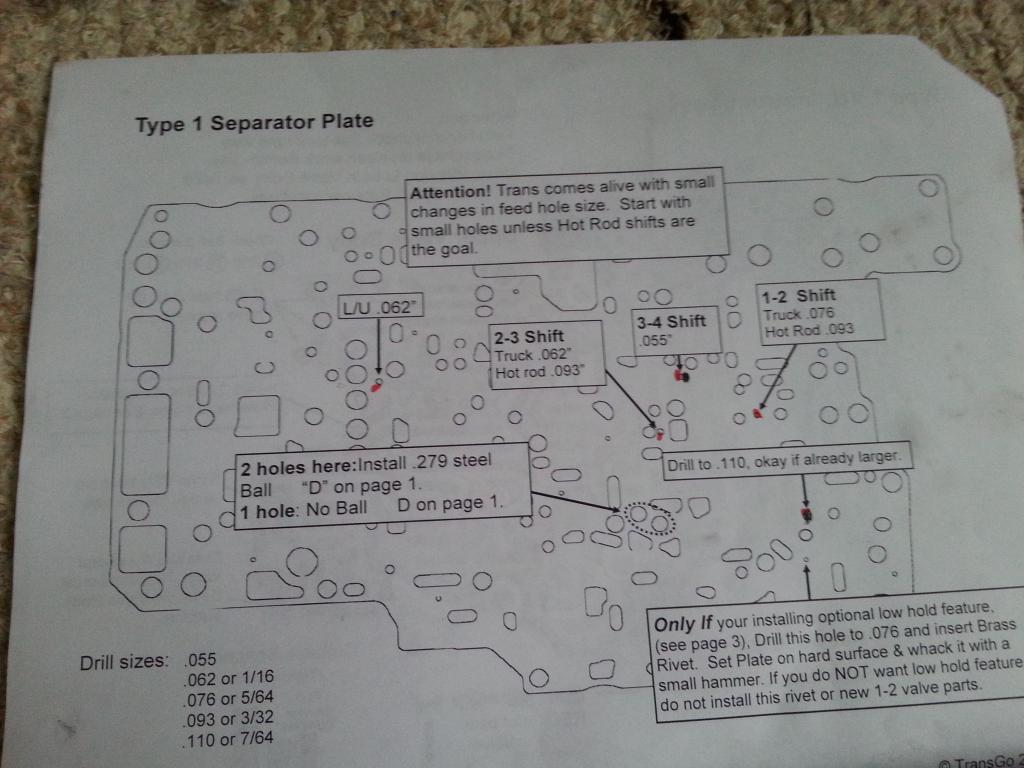

valve body mods with diagrams and marks on the plate.

the check balls re-located according to toyota diagrams.

bought new oil pump seal. FPM type. 22euros.

[sms1878]

re-positioned check-balls in valve-body and end of story with transmission.

[sms1878]

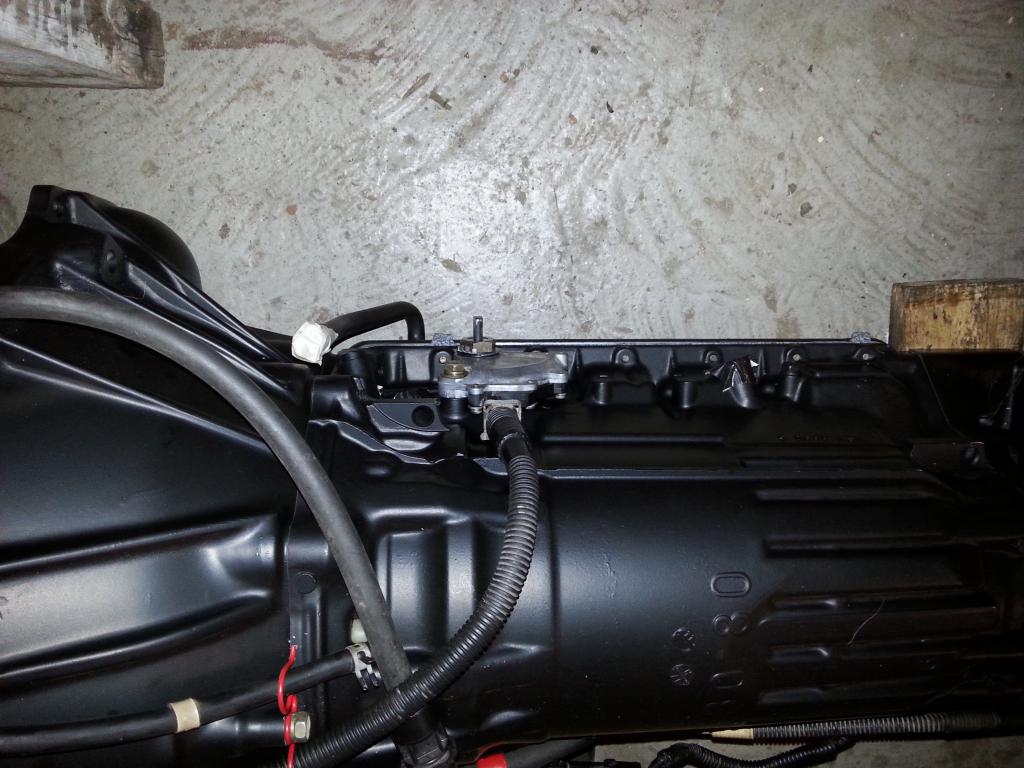

all set. finished with torque convertor. primed the shafts.
