90 Cherokee XJ rebuilding

[sms1878]

removed interior parts all of them. including console but still in that pic :P

[sms1878]

quick check on injectors. 3 out of 6 were fine. cleaned them up with ultrasonic cleaner.
got better ohm values after cleaning. from 14.8 to 16.5 ohms something.

[sms1878]

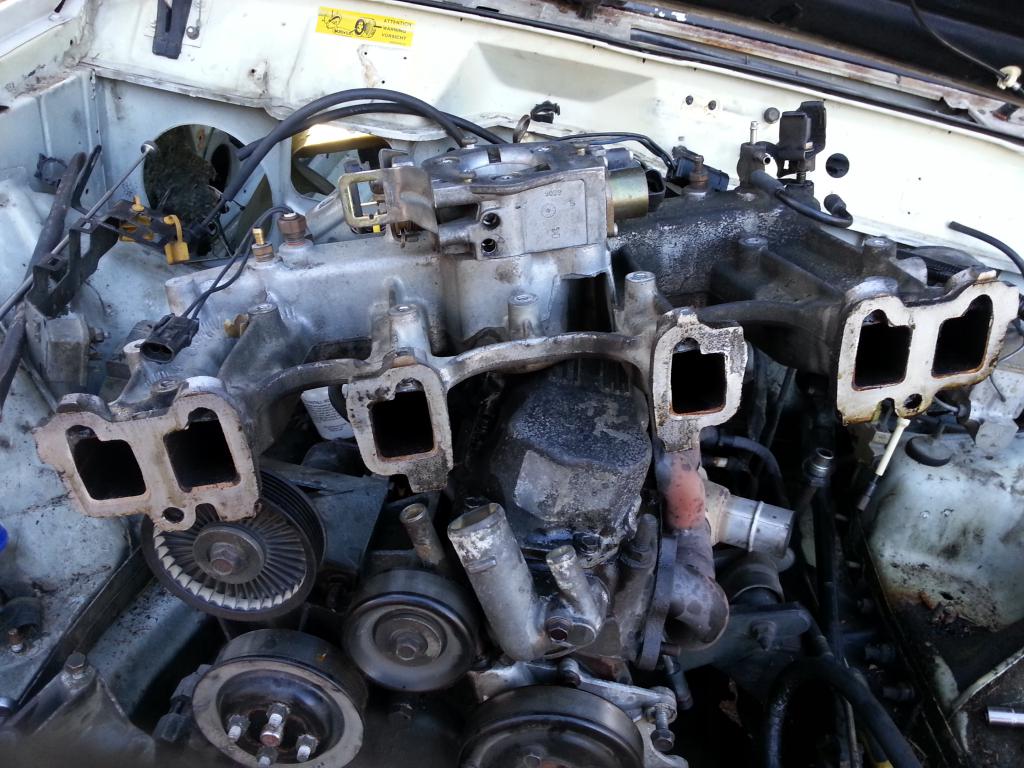

here comes the cylinder head off.

[sms1878]

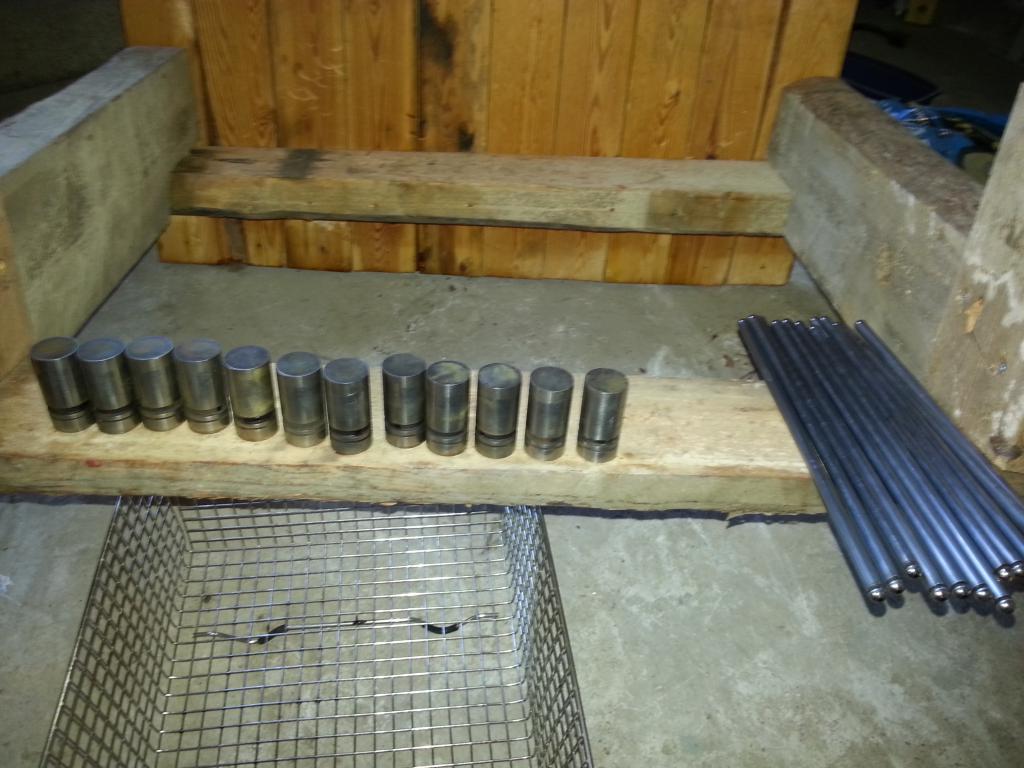

rocker arms and cam shifters before cleaning and after 2 rounds of 15 min with ultrasonic cleaner. now left them de greaser for night to get all dirt out.

[sms1878]

pics here.

[sms1878]

needed something to keep the engine hanging and adjust... wanted to do it before putting it back.

[sms1878]

was fighting with this bolt on top gearbox for 2 hrs to get it out. had to lower transfer case and engine.

[Mase]

Alkuperäinen kirjoittaja sms1878

rocker arms and cam shifters before cleaning and after 2lrounds of 15 min with ultrasonic cleaner. now left them de greaser for night to get all dirt out.

Maybe you should open hydraulic lifters to get dirt out from them. There is small snapring in top of lifter, after that piston and valve will come out and you can clean lifter from inside and check inner bore condition also. Dont mix pistons and valves to other lifters, and becarefull snaprings will fly cross the room when you twist it avay with skrewdriver!

[sms1878]

Alkuperäinen kirjoittaja ford59

Maybe you should open hydraulic lifters to get dirt out from them. There is small snapring in top of lifter, after that piston and valve will come out and you can clean lifter from inside and check inner bore condition also. Dont mix pistons and valves to other lifters, and becarefull snaprings will fly cross the room when you twist it avay with skrewdriver!

thanks, I guess I will open them too. those passages didn't seem so clean at all. I don't have every right tool so I need to figure out something to open them.

[Mase]

Alkuperäinen kirjoittaja sms1878

thanks, I guess I will open them too. those passages didn't seem so clean at all. I don't have every right tool so I need to figure out something to open them.

You need just 2 skrewdriver. With bigger one you press piston down 1mm and with smaler one you take snapring out. Little magnet will help you to take piston and valve out from lifter.

After you have assembled lifters back together sink them to motor oil and pump few times piston to fill it with oil. You can feel when piston wont compress anymore, then its full.
