90 Cherokee XJ rebuilding

[sms1878]

I started with doors but turned into something bigger that I didn't plan at all

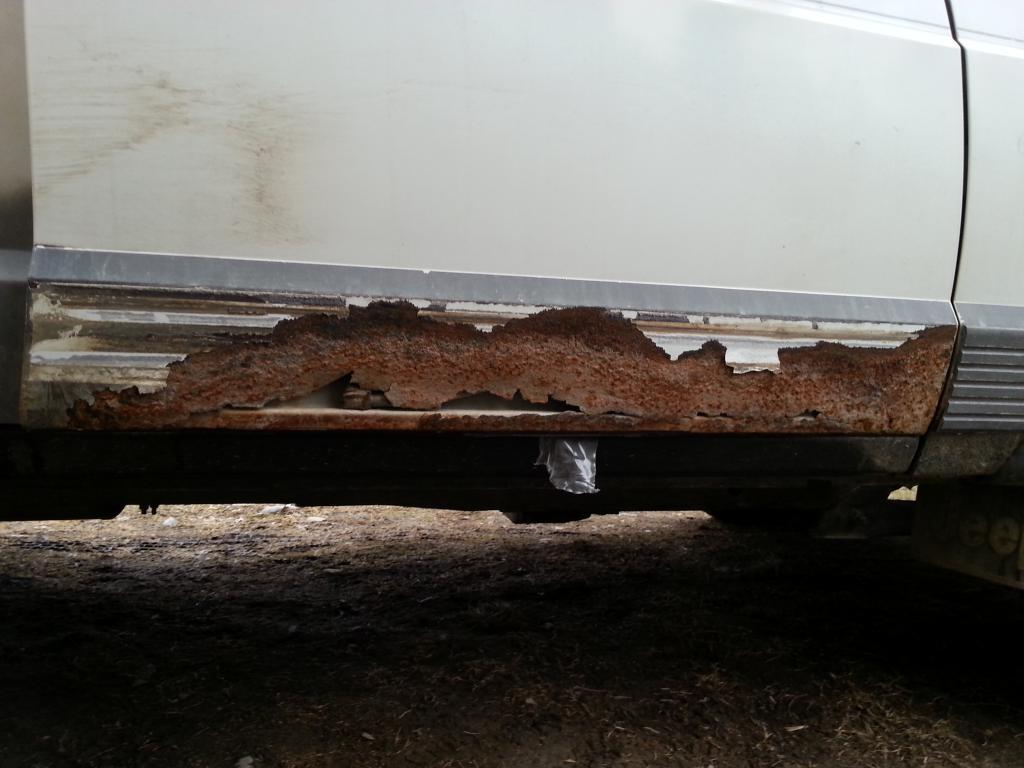

have couple of holes in trunk and bottom. nothing with chassis yet.

dissembling it into pieces time consuming and still on going, some nuts/bolts are quite rusty.

all suggestions are welcome.

[sms1878]

removed the carpet and usual ones

[sms1878]

removed interior parts all of them. including console but still in that pic :P

[sms1878]

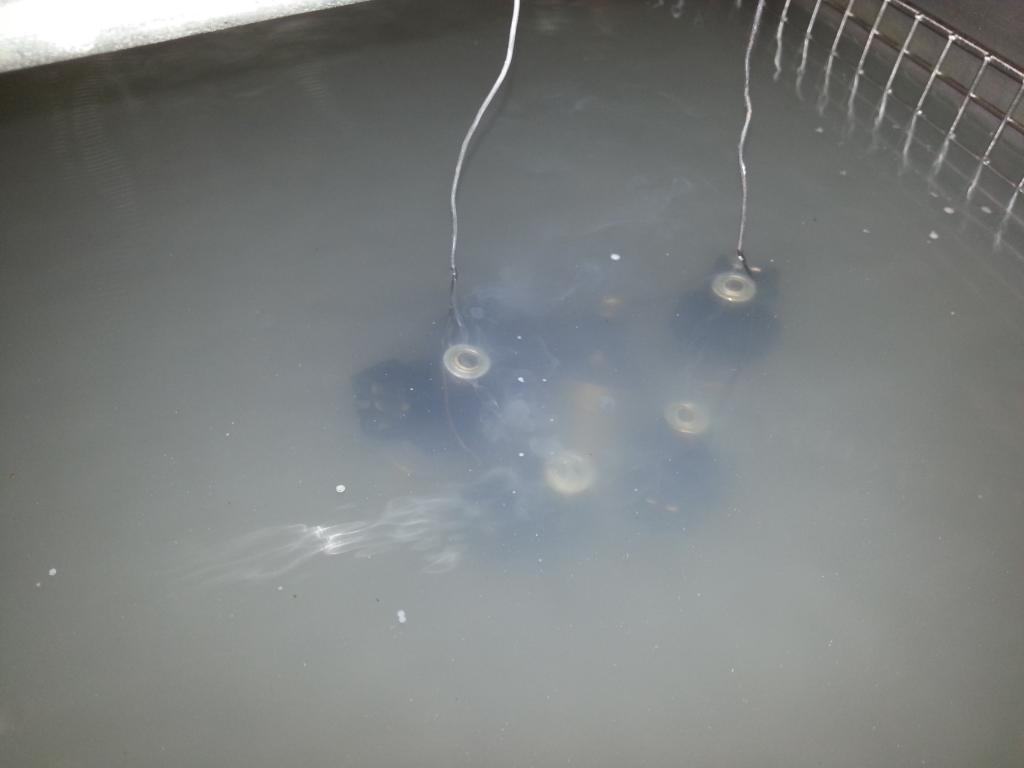

quick check on injectors. 3 out of 6 were fine. cleaned them up with ultrasonic cleaner.
got better ohm values after cleaning. from 14.8 to 16.5 ohms something.

[sms1878]

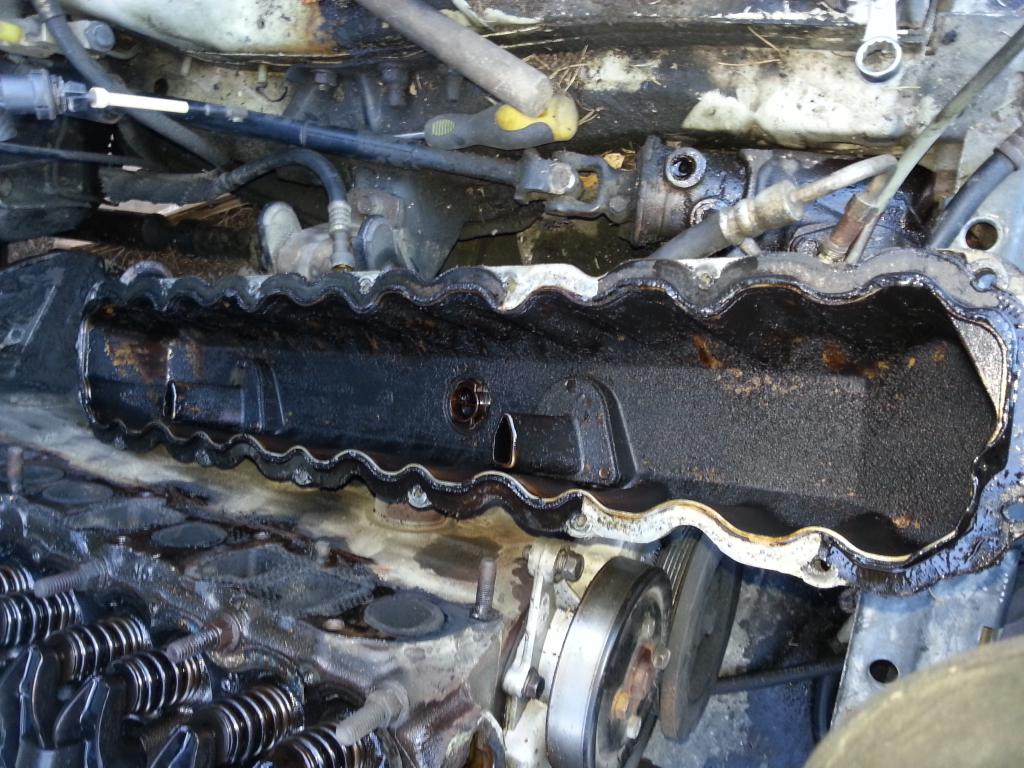

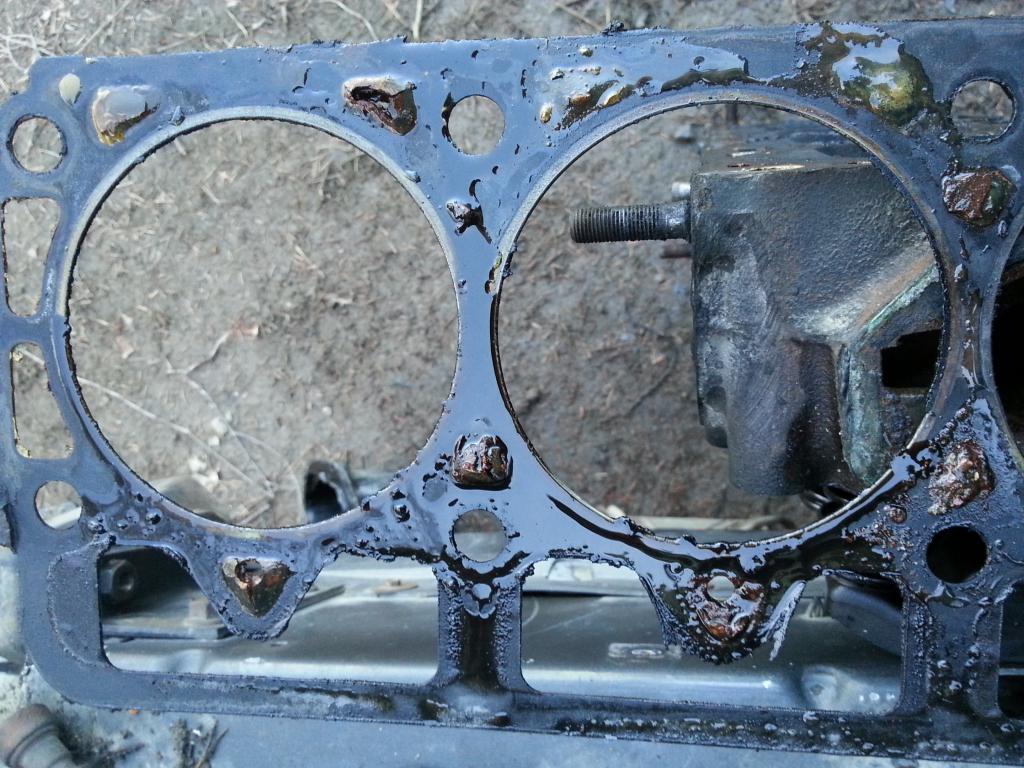

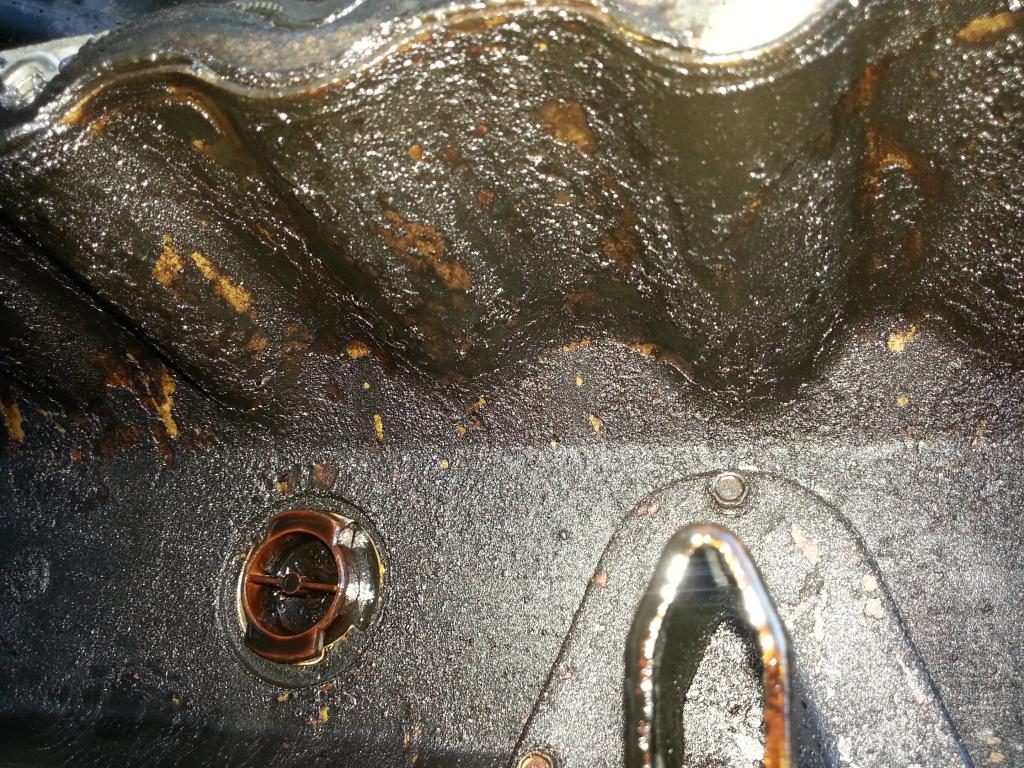

here comes the cylinder head off.

[sms1878]

rocker arms and cam shifters before cleaning and after 2 rounds of 15 min with ultrasonic cleaner. now left them de greaser for night to get all dirt out.

[sms1878]

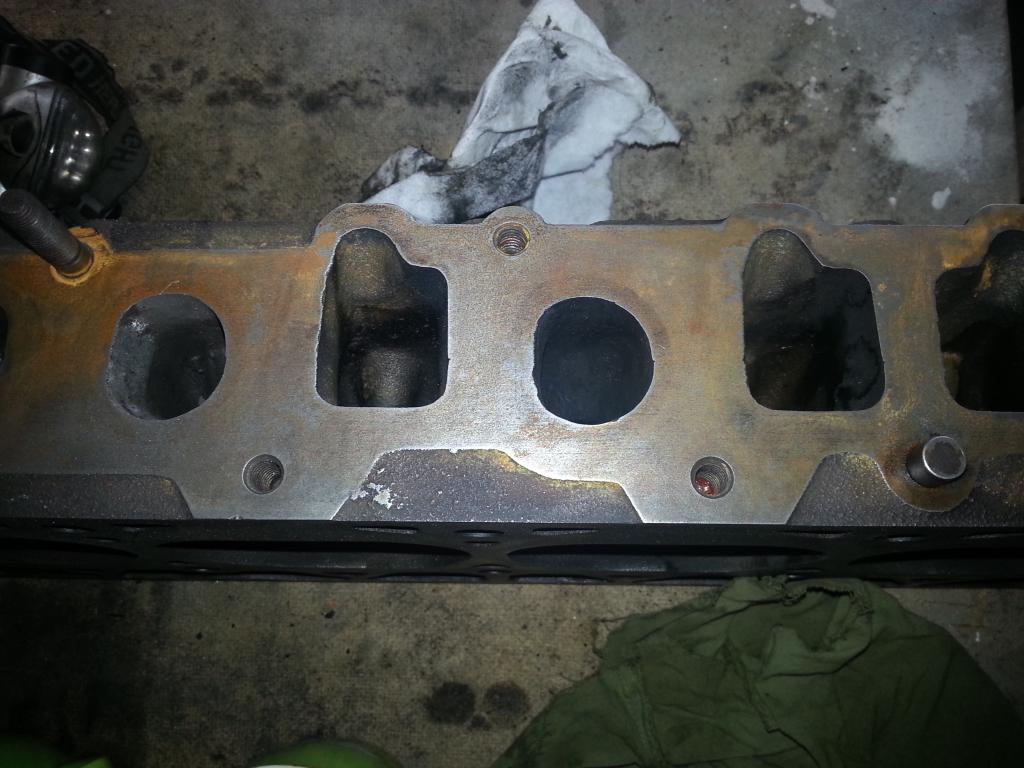

cleaning out intake and exhaust housings. doing sanding with dremel nothing much.

will do buffing after cleaning them up all.

[Jeeper]

That block needs 258cid crank and rods

[sms1878]

Alkuperäinen kirjoittaja Jeeper

That block needs 258cid crank and rods

I have been thinking about replacing it with 258 's stuff

but for now I wanna put it back all together

[sms1878]

done with the head. painted too.

[sms1878]

got camshaft bearing installation tool. since fixing engines quite often, it will be useful though.

[sms1878]

after a long break, started to put things together again.

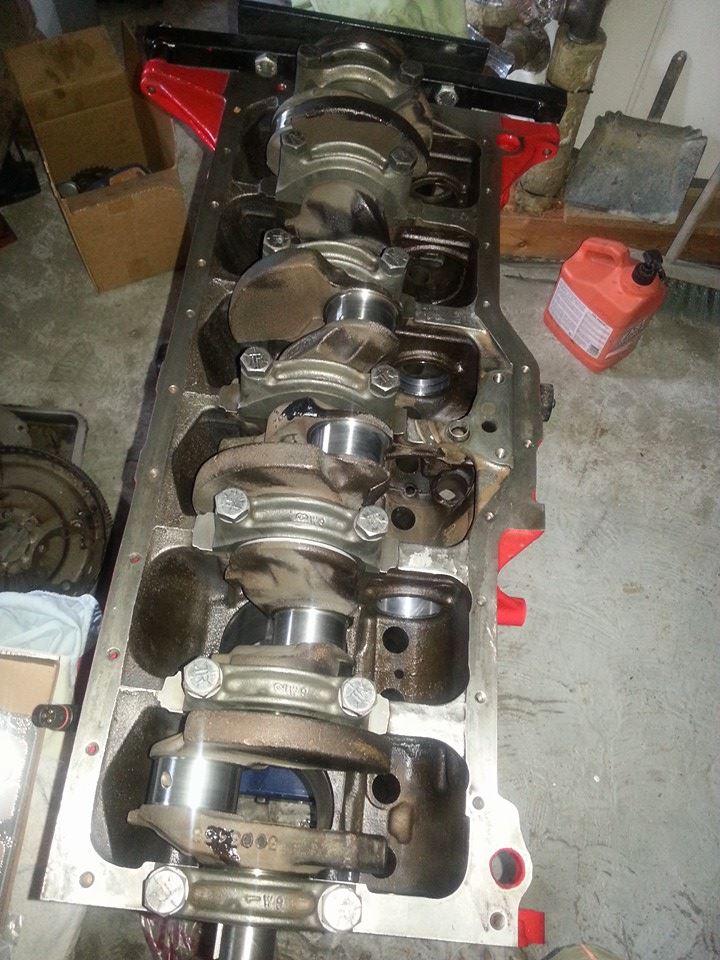

installed camshaft bearings and crankshaft.
